GrantingCredit

License for TIBCO Software Use Only!

Section contains description of Process " GrantingCredit.process " .

Modification time: 2023/04/20 10:31:06

Folder description:


Folder	Description
GrantingCredit	The application Granting credit provides resolution whether a credit (or mortgage) can be granded to a user. Information about user is the input of the application.
/ProcessDefinitions	All process definitions

Process description:


No description

Process definition:

Full process path: ProcessDefinitions/GrantingCredit.process

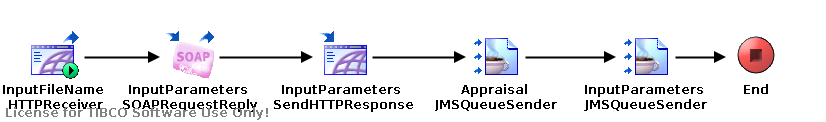

Diagram:

Process starter activity:

Name: InputFileName HTTPReceiver

Property Name: InputFileName HTTPReceiver
- Type: com.tibco.plugin.http.HTTPEventSource
- Resource Type: httppalette.httpEventSource
- Description:
- Configuration:
  - outputMode = String
  - defaultEncoding = UTF8
  - inputOutputVersion = 5.3.0
  - newMimeSupport = true
  - sharedChannel = /SharedConnections/InputHTTPConnection.sharedhttp
  - customField
    row
    attribute = InputParameters
    attributeType = string
    attributeCard = optional
  - Headers
    + root (Complex Type, required )
    - Accept(xsd:string,optional)
    - Accept-Charset(xsd:string,optional)
    - Accept-Encoding(xsd:string,optional)
    - Content-Type(xsd:string,optional)
    - Content-Length(xsd:string,optional)
    - Connection(xsd:string,optional)
    - Cookie(xsd:string,optional)
    - Pragma(xsd:string,optional)

Process end activity:

Name: End

Activities:

Name: Appraisal JMSQueueSender

Type: com.tibco.plugin.jms.JMSQueueSendActivity
Resource Type: ae.activities.JMSQueueSendActivity
Description:
Configuration:
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1
  - maxSessions = 1
  - destination = %%ENV%%.%%AppraisalJMSQueueRequestName%%
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
- ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
- ApplicationProperties =
- InDataxsdString
  - - AppraisalRequest (XML Element Reference, required )

Input bindings:

Mapping table


Target	Source
/ActivityInput/Body/AppraisalRequest/Name	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
/ActivityInput/Body/AppraisalRequest/RealtyDetail	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
/ActivityInput/Body/AppraisalRequest/Pawn	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn

Mapping tree


ActivityInput
 Body
  AppraisalRequest
   Name = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
   RealtyDetail = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
   Pawn = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn

Source code


            <ns2:ActivityInput xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <Body>
                    <pfx5:AppraisalRequest>
                        <Name>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name"/>
                        </Name>
                        <RealtyDetail>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail"/>
                        </RealtyDetail>
                        <Pawn>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn"/>
                        </Pawn>
                    </pfx5:AppraisalRequest>
                </Body>
            </ns2:ActivityInput>

Name: InputParameters JMSQueueSender

Type: com.tibco.plugin.jms.JMSQueueSendActivity
Resource Type: ae.activities.JMSQueueSendActivity
Description:
Configuration:
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1
  - maxSessions = 1
  - destination = %%ENV%%.%%JMSQueueName%%
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
  - JMSReplyTo =
- ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
- ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
- InDataxsdString
  - - InputParameters (XML Element Reference, required )

Input bindings:

Mapping table


Target	Source
/ActivityInput/OtherProperties/Part	"InputParameters"
/ActivityInput/Body/InputParameters/Name	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
/ActivityInput/Body/InputParameters/Value	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value
/ActivityInput/Body/InputParameters/Salary	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary
/ActivityInput/Body/InputParameters/Refund	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund
/ActivityInput/Body/InputParameters/Pawn	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn
/ActivityInput/Body/InputParameters/RealtyDetail	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
/ActivityInput/Body/InputParameters/RealtyValue	$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue

Mapping tree


ActivityInput
 OtherProperties
  Part = "InputParameters"
 Body
  InputParameters
   Name = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name
   Value = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value
   Salary = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary
   Refund = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund
   Pawn = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn
   RealtyDetail = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail
   RealtyValue = $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue

Source code


            <ns2:ActivityInput xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&quot;InputParameters&quot;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx3:InputParameters>
                        <Name>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name"/>
                        </Name>
                        <Value>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value"/>
                        </Value>
                        <Salary>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary"/>
                        </Salary>
                        <Refund>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund"/>
                        </Refund>
                        <Pawn>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn"/>
                        </Pawn>
                        <RealtyDetail>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail"/>
                        </RealtyDetail>
                        <RealtyValue>
                            <xsl:value-of select="$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue"/>
                        </RealtyValue>
                    </pfx3:InputParameters>
                </Body>
            </ns2:ActivityInput>

Name: InputParameters SendHTTPResponse

Type: com.tibco.plugin.http.HTTPResponseActivity
Resource Type: httppalette.httpWebResponse
Description:
Configuration:
- closeConnection = true
- eventSource = InputFileName HTTPReceiver
- Headers
  - + root (Complex Type, required )
    - - StatusLine(xsd:string,optional)
    - - Content-Type(xsd:string,optional)
    - - Set-Cookie(xsd:string,optional)
    - - Pragma(xsd:string,optional)
    - - Location(xsd:string,optional)

Input bindings:

Mapping table


Target	Source
/ResponseActivityInput/asciiContent	concat("<H1>InputParameters:</H1><B>Name:</B> ", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name, "<BR><B>Value: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value, "<BR><B>Refund: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund, "<BR><B>Salary: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary, "<BR><B>Pawn: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn, "<BR><B>RealtyDetail: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail, "<BR><B>RealtyValue: </B>", $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)

Mapping tree


ResponseActivityInput
 asciiContent = concat("<H1>InputParameters:</H1><B>Name:</B>  ",
 $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name,
 "<BR><B>Value: </B>",
$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value,
"<BR><B>Refund: </B>",
$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund,
"<BR><B>Salary: </B>",
 $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary,
 "<BR><B>Pawn: </B>",
$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn,
 "<BR><B>RealtyDetail: </B>",
$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail,
 "<BR><B>RealtyValue: </B>",
$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)

Source code


            <ResponseActivityInput xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <asciiContent>
                    <xsl:value-of select="concat(&quot;&lt;H1&gt;InputParameters:&lt;/H1&gt;&lt;B&gt;Name:&lt;/B&gt;  &quot;,&#10; $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Name,&#10; &quot;&lt;BR&gt;&lt;B&gt;Value: &lt;/B&gt;&quot;, &#10;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Value,&#10;&quot;&lt;BR&gt;&lt;B&gt;Refund: &lt;/B&gt;&quot;,&#10;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Refund,&#10;&quot;&lt;BR&gt;&lt;B&gt;Salary: &lt;/B&gt;&quot;,  &#10; $InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Salary,&#10; &quot;&lt;BR&gt;&lt;B&gt;Pawn: &lt;/B&gt;&quot;, &#10;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:Pawn,&#10; &quot;&lt;BR&gt;&lt;B&gt;RealtyDetail: &lt;/B&gt;&quot;, &#10;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyDetail,&#10; &quot;&lt;BR&gt;&lt;B&gt;RealtyValue: &lt;/B&gt;&quot;, &#10;$InputParameters-SOAPRequestReply/outputMessage/ns:InputParameters/ns:RealtyValue)"/>
                </asciiContent>
            </ResponseActivityInput>

Name: InputParameters SOAPRequestReply

Type: com.tibco.plugin.soap.SOAPSendReceiveActivity
Resource Type: ae.activities.SOAPSendReceiveUI
Description:
Configuration:
- timeout = 0
- service = pfx:LoadParametersService
- servicePort = InputFileName_sp_from_sp_SOAPEventSource
- operation = LoadParametersServiceOperation
- soapAction = /ProcessDefinitions/LoadParameters/LoadParametersService
- endpointURL = %%LoadParametersServiceEndpointURL%%
- useProxy = false
- requireBasicAuth = false
- basicHttpAuthIdentity =

Input bindings:

Mapping table
Target Source
/inputMessage/InputFile/FileName $InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters

Target	Source
/inputMessage/InputFile/FileName	$InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters

Mapping tree


inputMessage
 InputFile
  FileName = $InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters

Source code


            <inputMessage xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx="http://xmlns.example.com/1171295149828/LoadParametersServiceOperationImpl" xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:ns="http://www.tibco.com/schemas/GrantingCredit/SharedConnections/Schema.xsd" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:ns2="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/AESchema" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx5="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <ns:InputFile>
                    <ns:FileName>
                        <xsl:value-of select="$InputFileName-HTTPReceiver/ProcessStarterOutput/parameters/InputParameters"/>
                    </ns:FileName>
                </ns:InputFile>
            </inputMessage>

Transitions:

From: Appraisal JMSQueueSender -To: InputParameters JMSQueueSender
- Label:
- Condition: Success
- Description:

From: InputFileName HTTPReceiver -To: InputParameters SOAPRequestReply
- Label:
- Condition: Success
- Description:

From: InputParameters JMSQueueSender -To: End
- Label:
- Condition: Success
- Description:

From: InputParameters SendHTTPResponse -To: Appraisal JMSQueueSender
- Label:
- Condition: Success
- Description:

From: InputParameters SOAPRequestReply -To: InputParameters SendHTTPResponse
- Label:
- Condition: Success
- Description:
