ExaminationService

License for TIBCO Software Use Only!

Section contains description of Process " ExaminationService.process " .

Modification time: 2023/04/20 10:31:06

Folder description:


Folder	Description
GrantingCredit	The application Granting credit provides resolution whether a credit (or mortgage) can be granded to a user. Information about user is the input of the application.
/ProcessDefinitions	All process definitions
/ProcessDefinitions/Examination	Processes for result examination about GrantingCredit

Process description:


No description

Process definition:

Full process path: ProcessDefinitions/Examination/ExaminationService.process

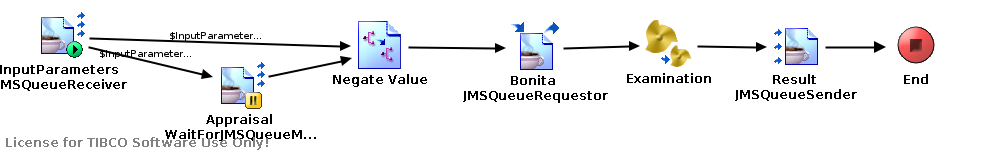

Diagram:

Process starter activity:

Name: InputParameters JMSQueueReceiver

Property Name: InputParameters JMSQueueReceiver
- Type: com.tibco.plugin.jms.JMSQueueEventSource
- Resource Type: ae.activities.JMSQueueEventSource
- Description:
- Configuration:
  - PermittedMessageType = XML Text
  - SessionAttributes
    transacted = false
    acknowledgeMode = 1 (Auto)
    maxSessions = 1
    destination = %%ENV%%.%%JMSQueueName%%
    selector = Part='InputParameters'
  - ConfigurableHeaders
    JMSDeliveryMode = PERSISTENT
    JMSExpiration = 0
    JMSPriority = 4
  - ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
  - OutDataxsdString
    - InputParameters (XML Element Reference, required )

Process end activity:

Name: End

Activities:

Name: Appraisal WaitForJMSQueueMessage

Type: com.tibco.plugin.jms.JMSQueueSignalInActivity
Resource Type: ae.activities.JMSQueueSignalInActivity
Description:
Configuration:
- _eventTimeout = 60000
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1 (Auto)
  - maxSessions = -1
  - destination = %%ENV%%.%%AppraisalJMSQueueResultName%%
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
- ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
- ApplicationProperties =
- OutDataxsdString
  - - AppraisalResult (XML Element Reference, required )

Name: Bonita JMSQueueRequestor

Type: com.tibco.plugin.jms.JMSQueueRequestReplyActivity
Resource Type: ae.activities.JMSQueueRequestReplyActivity
Description:
Configuration:
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1
  - maxSessions = 1
  - destination = %%ENV%%.%%CalculateBonitaJMSQueueName%%
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
- ConnectionReference = /SharedConnections/CalculateBonitaEMSConnection.sharedjmscon
- ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
- InDataxsdString
  - - InputParameters (XML Element Reference, required )
- OutDataxsdString
  - - PretenderBonita (XML Element Reference, required )

Input bindings:

Mapping table


Target	Source
/ActivityInput/replyToQueue	concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)
/ActivityInput/OtherProperties/Part	"CalculateBonita"
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
/ActivityInput/Body/InputParameters/Value	$Negate-Value/Value
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary>/MonthIncrement	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil >
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary>/MonthIncrement	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
/ActivityInput/Body/InputParameters/RealtyValue/[WHEN]<exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue)>	if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue
/ActivityInput/Body/InputParameters/RealtyValue/[OTHERWISE]	[NIL]
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
/ActivityInput/Body/InputParameters/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund

Mapping tree


ActivityInput
 replyToQueue = concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)
 OtherProperties
  Part = "CalculateBonita"
 Body
  InputParameters
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name >
    Name = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
   Value = $Negate-Value/Value
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary >
    MonthIncrement = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil >
   RealtyValue
    [CHOOSE]
     [WHEN] < exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue) > = if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue
     [OTHERWISE]
      @xsi:nil = true
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund >
    Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >

Source code


            <ns:ActivityInput xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <replyToQueue>
                    <xsl:value-of select="concat($_globalVariables/ns1:GlobalVariables/ENV, $_globalVariables/ns1:GlobalVariables/ExaminationJMSQueueName)"/>
                </replyToQueue>
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&quot;CalculateBonita&quot;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx2:InputParameters>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name">
                            <Name>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name"/>
                            </Name>
                        </xsl:if>
                        <Value>
                            <xsl:value-of select="$Negate-Value/Value"/>
                        </Value>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary">
                            <MonthIncrement>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary"/>
                            </MonthIncrement>
                        </xsl:if>
                        <RealtyValue>
                            <xsl:choose>
                                <xsl:when test="exists(if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue)">
                                    <xsl:value-of select="if($Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/customerName =   $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name) then $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue else $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyValue"/>
                                </xsl:when>
                                <xsl:otherwise>
                                    <xsl:attribute name="xsi:nil">true</xsl:attribute>
                                </xsl:otherwise>
                            </xsl:choose>
                        </RealtyValue>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund">
                            <Refund>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                            </Refund>
                        </xsl:if>
                    </pfx2:InputParameters>
                </Body>
            </ns:ActivityInput>

Name: Examination

Type: com.tibco.pe.core.CallProcessActivity
Resource Type: ae.process.subprocess
Description:
Configuration:
- processName = /ProcessDefinitions/Examination/Examination.process

Input bindings:

Mapping table


Target	Source
/InputParameters/Refund	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
/InputParameters/Salary	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
/InputParameters/Value	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
/InputParameters/Bonita	$Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita
/InputParameters/Pawn	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn

Mapping tree


InputParameters
 Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
 Salary = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary
 Value = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
 Bonita = $Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita
 Pawn = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn

Source code


            <InputParameters xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <Refund>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                </Refund>
                <Salary>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Salary"/>
                </Salary>
                <Value>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
                </Value>
                <Bonita>
                    <xsl:value-of select="$Bonita-JMSQueueRequestor/ns:ActivityOutput/Body/pfx2:PretenderBonita/Bonita"/>
                </Bonita>
                <Pawn>
                    <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn"/>
                </Pawn>
            </InputParameters>

Name: Negate Value

Type: com.tibco.plugin.mapper.MapperActivity
Resource Type: ae.activities.MapperActivity
Description:
Configuration:
- - Value(xsd:long,required)

Input bindings:

Mapping table
Target Source
/Value - $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value

Target	Source
/Value	- $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value

Mapping tree


Value = -  $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value

Source code


            <Value xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <xsl:value-of select="-  $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
            </Value>

Name: Result JMSQueueSender

Type: com.tibco.plugin.jms.JMSQueueSendActivity
Resource Type: ae.activities.JMSQueueSendActivity
Description:
Configuration:
- PermittedMessageType = XML Text
- SessionAttributes
  - transacted = false
  - acknowledgeMode = 1
  - maxSessions = 1
  - destination = %%ENV%%.%%JMSQueueName%%
- ConfigurableHeaders
  - JMSDeliveryMode = PERSISTENT
  - JMSExpiration = 0
  - JMSPriority = 4
- ConnectionReference = /SharedConnections/EMSConnection.sharedjmscon
- ApplicationProperties = /SharedResources/JMSApplicationProperties.sharedjmsapp
- InDataxsdString
  - - GrantingCreditResult (XML Element Reference, required )

Input bindings:

Mapping table

Mapping tree


ActivityInput
 OtherProperties
  Part = "Result"
 Body
  GrantingCreditResult
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name >
    Name = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value >
    Value = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund >
    Refund = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn >
    Pawn = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil >
   Interest = $Examination/ExaminationResult/Interest
   State = $Examination/ExaminationResult/State
   RealtyValue = $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue
    nil = [COPY-OF] < $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil >
   [IF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail >
    RealtyDetail = $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail
     nil = [COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil >

Source code


            <ns:ActivityInput xmlns:ns="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/GrantingCreditAESchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/EMS/CalculateBonitaAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ns1="http://www.tibco.com/pe/DeployedVarsType" xmlns:pfx3="http://www.tibco.com/pe/SignalInActivitySchema" xmlns:pfx4="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalAESchema">
                <OtherProperties>
                    <Part>
                        <xsl:value-of select="&quot;Result&quot;"/>
                    </Part>
                </OtherProperties>
                <Body>
                    <pfx:GrantingCreditResult>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name">
                            <Name>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name"/>
                            </Name>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value">
                            <Value>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value"/>
                            </Value>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund">
                            <Refund>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund"/>
                            </Refund>
                        </xsl:if>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn">
                            <Pawn>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn"/>
                            </Pawn>
                        </xsl:if>
                        <Interest>
                            <xsl:value-of select="$Examination/ExaminationResult/Interest"/>
                        </Interest>
                        <State>
                            <xsl:value-of select="$Examination/ExaminationResult/State"/>
                        </State>
                        <RealtyValue>
                            <xsl:copy-of select="$Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil"/>
                            <xsl:value-of select="$Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue"/>
                        </RealtyValue>
                        <xsl:if test="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail">
                            <RealtyDetail>
                                <xsl:copy-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil"/>
                                <xsl:value-of select="$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail"/>
                            </RealtyDetail>
                        </xsl:if>
                    </pfx:GrantingCreditResult>
                </Body>
            </ns:ActivityInput>

Transitions:

From: Appraisal WaitForJMSQueueMessage -To: Negate Value
- Label:
- Condition: Success
- Description:

From: Bonita JMSQueueRequestor -To: Examination
- Label:
- Condition: Success
- Description:

From: Examination -To: Result JMSQueueSender
- Label:
- Condition: Success
- Description:

From: InputParameters JMSQueueReceiver -To: Appraisal WaitForJMSQueueMessage
- Label:
- Condition: $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn = "true"
- Description:

From: InputParameters JMSQueueReceiver -To: Negate Value
- Label:
- Condition: $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn = "false"
- Description:

From: Negate Value -To: Bonita JMSQueueRequestor
- Label:
- Condition: Success
- Description:

From: Result JMSQueueSender -To: End
- Label:
- Condition: Success
- Description:

Target	Source
/ActivityInput/OtherProperties/Part	"Result"
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name>/Name	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Name
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value>/Value	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value>/Value	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Value
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund>/Refund	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Refund
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn>/Pawn	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn>/Pawn	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/Pawn
/ActivityInput/Body/GrantingCreditResult/Interest	$Examination/ExaminationResult/Interest
/ActivityInput/Body/GrantingCreditResult/State	$Examination/ExaminationResult/State
/ActivityInput/Body/GrantingCreditResult/RealtyValue	[COPY-OF] < $Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/RealtyValue	$Appraisal-WaitForJMSQueueMessage/ns:ActivityOutput/Body/pfx4:AppraisalResult/realtyValue
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail>/RealtyDetail	[COPY-OF] < $InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail/@xsi:nil >
/ActivityInput/Body/GrantingCreditResult/[IF]<$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail>/RealtyDetail	$InputParameters-JMSQueueReceiver/ns:ActivityOutput/Body/pfx:InputParameters/RealtyDetail
