TriggerCourtProcess

License for TIBCO Software Use Only!

Section contains description of Process " TriggerCourtProcess.process " .

Modification time: 2023/04/20 10:31:06

Folder description:

FolderDescription
/PantherBW/ProcessDefinitions/BusinessLogicThe folder that contain the main procedures....

Process description:

The process which triggers procedures in the iProcess

Process definition:

Full process path: PantherBW/ProcessDefinitions/BusinessLogic/TriggerCourtProcess.process

Diagram:

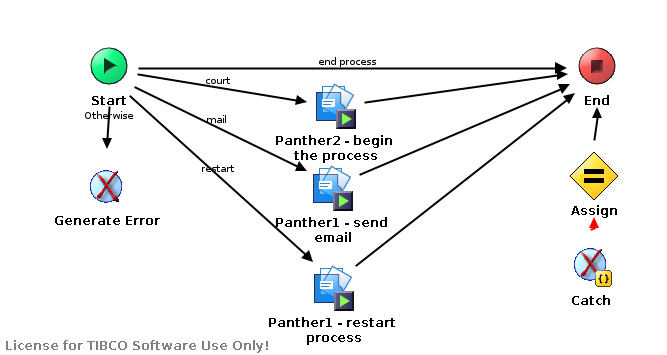

StartEndPanther2 - begin the processPanther1 - send emailGenerate ErrorCatchAssignPanther1 - restart processFrom: Start To: Panther2 - begin the processFrom: Panther2 - begin the process To: EndFrom: Start To: Panther1 - send emailFrom: Panther1 - send email To: EndFrom: Start To: Generate ErrorFrom: Catch To: AssignFrom: Assign To: EndFrom: Start To: EndFrom: Panther1 - restart process To: EndFrom: Start To: Panther1 - restart process

Process starter activity:

Name: Start

Description: The beginning of TriggerCourt process

Input Parameters:

  • - TriggerCourtProcessRequest (XML Element Reference, required )

Process end activity:

Name: End

Output Parameters:

  • - TriggerCourtProcessResponse (XML Element Reference, required )
Return bindings:

  • Mapping table

    TargetSource
    /[WHEN]<$Variable0/Results/ResultCode=0>/TriggerCourtProcessResponse/ResultCode 0
    /[OTHERWISE]/TriggerCourtProcessResponse/ResultCode -1
    /[OTHERWISE]/TriggerCourtProcessResponse/ResultMessage "Error."

  • Mapping tree


[CHOOSE]
 [WHEN] < $Variable0/Results/ResultCode=0 >
  TriggerCourtProcessResponse
   ResultCode = 0
 [OTHERWISE]
  TriggerCourtProcessResponse
   ResultCode = -1
   ResultMessage = "Error."

  • Source code


        <xsl:choose xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
            <xsl:when test="$Variable0/Results/ResultCode=0">
                <pfx:TriggerCourtProcessResponse>
                    <pfx:ResultCode>
                        <xsl:value-of select="0"/>
                    </pfx:ResultCode>
                </pfx:TriggerCourtProcessResponse>
            </xsl:when>
            <xsl:otherwise>
                <pfx:TriggerCourtProcessResponse>
                    <pfx:ResultCode>
                        <xsl:value-of select="-1"/>
                    </pfx:ResultCode>
                    <pfx:ResultMessage>
                        <xsl:value-of select="&quot;Error.&quot;"/>
                    </pfx:ResultMessage>
                </pfx:TriggerCourtProcessResponse>
            </xsl:otherwise>
        </xsl:choose>

Process variables:

Schema: Variable0

  • + Results (Complex Type, required )
    • - ResultCode(xsd:int,required)
    • - ResultMsg(xsd:string,optional)

Activities:

Name: Assign

  • Type: com.tibco.pe.core.AssignActivity
  • Resource Type: ae.activities.assignActivity
  • Description: It assigns the error value and error message.
  • Configuration:
    • variableName = Variable0
  • Input bindings:

    • Mapping table

      TargetSource
      /Results/ResultCode -1
      /Results/ResultMsg "Error"

    • Mapping tree


Results
 ResultCode = -1
 ResultMsg = "Error"

    • Source code


            <Results xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
                <ResultCode>
                    <xsl:value-of select="-1"/>
                </ResultCode>
                <ResultMsg>
                    <xsl:value-of select="&quot;Error&quot;"/>
                </ResultMsg>
            </Results>

Name: Catch

  • Type: com.tibco.pe.core.CatchActivity
  • Resource Type: ae.activities.catch
  • Description: The error catcher...
  • Configuration:
    • catchAll = true

Name: Generate Error

  • Type: com.tibco.pe.core.GenerateErrorActivity
  • Resource Type: ae.activities.throw
  • Description: Generates error when someone is trying to run other procedure then pre-defined
  • Configuration:
    • faultName =
  • Input bindings:

    • Mapping table

      TargetSource
      /ActivityInput/message "Judge made wrong decision."

    • Mapping tree


ActivityInput
 message = "Judge made wrong decision."

    • Source code


            <pfx2:ActivityInput xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
                <message>
                    <xsl:value-of select="&quot;Judge made wrong decision.&quot;"/>
                </message>
            </pfx2:ActivityInput>

Name: Panther1 - restart process

  • Type: com.tibco.plugin.staffware.iProcessStartCaseActivity
  • Resource Type: ae.activities.iProcessStartCase
  • Description: Panther1 - restart process
  • Configuration:
    • StaffwareStepType = 2
    • StaffwareProcedureStatus = 1
    • UseCasePrecedenceRule = true
    • StaffwareProcedureStartMode = 1
    • ShowStaffwareProcedureSystemFields = false
    • ValidateInputValueLength = true
    • OverrideTransactionBehavior = false
    • StaticConfiguration = false
    • StaffwareProcedureName = PANTHER1 (0.6)
    • StaffwareProcedureInput = N_EMAILS^82^?^10^0,T_DATE^65^?^20^0,T_ERRORMSG^70^?^0^0,T_EXPDATE^65^?^20^0,T_FIRSTMAIL^65^?^20^0,T_WAIT^65^?^20^0,
    • StaffwareNodeInfo = 0^/^:^[3.1.1]^
    • StaffwareStepName = RT00
    • StaffwareStepInput =
    • StaffwareConnection = /SharedResources/Connection/iProcess Connection.sharediprocesscon
  • Input bindings:

    • Mapping table

      TargetSource
      /iProcessStartCaseActivityInput/CaseDescription-24 $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Mapping tree


iProcessStartCaseActivityInput
 CaseDescription-24 = $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Source code


            <ns:iProcessStartCaseActivityInput xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
                <CaseDescription-24>
                    <xsl:value-of select="$Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM"/>
                </CaseDescription-24>
            </ns:iProcessStartCaseActivityInput>

Name: Panther1 - send email

  • Type: com.tibco.plugin.staffware.iProcessStartCaseActivity
  • Resource Type: ae.activities.iProcessStartCase
  • Description: Panther1 - send email
  • Configuration:
    • StaffwareStepType = 0
    • StaffwareProcedureStatus = 1
    • UseCasePrecedenceRule = true
    • StaffwareProcedureStartMode = 1
    • ShowStaffwareProcedureSystemFields = false
    • ValidateInputValueLength = true
    • OverrideTransactionBehavior = false
    • StaticConfiguration = false
    • StaffwareProcedureName = PANTHER1 (0.6)
    • StaffwareProcedureInput = N_EMAILS^82^?^10^0,T_DATE^65^?^20^0,T_ERRORMSG^70^?^0^0,T_EXPDATE^65^?^20^0,T_FIRSTMAIL^65^?^20^0,T_WAIT^65^?^20^0,
    • StaffwareNodeInfo = 0^/^:^[3.1.1]^
    • StaffwareStepName = RT03
    • StaffwareStepInput =
    • StaffwareConnection = /SharedResources/Connection/iProcess Connection.sharediprocesscon
  • Input bindings:

    • Mapping table

      TargetSource
      /iProcessStartCaseActivityInput/CaseDescription-24 $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Mapping tree


iProcessStartCaseActivityInput
 CaseDescription-24 = $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Source code


            <ns:iProcessStartCaseActivityInput xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
                <CaseDescription-24>
                    <xsl:value-of select="$Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM"/>
                </CaseDescription-24>
            </ns:iProcessStartCaseActivityInput>

Name: Panther2 - begin the process

  • Type: com.tibco.plugin.staffware.iProcessStartCaseActivity
  • Resource Type: ae.activities.iProcessStartCase
  • Description: Panther2 - begin the process
  • Configuration:
    • StaffwareStepType = 2
    • StaffwareProcedureStatus = 1
    • UseCasePrecedenceRule = true
    • StaffwareProcedureStartMode = 1
    • ShowStaffwareProcedureSystemFields = false
    • ValidateInputValueLength = true
    • OverrideTransactionBehavior = false
    • StaticConfiguration = false
    • StaffwareProcedureName = PANTHER2 (0.1)
    • StaffwareProcedureInput =
    • StaffwareNodeInfo = 0^/^:^[3.1.1]^
    • StaffwareStepName = RT00
    • StaffwareStepInput =
    • StaffwareConnection = /SharedResources/Connection/iProcess Connection.sharediprocesscon
  • Input bindings:

    • Mapping table

      TargetSource
      /iProcessStartCaseActivityInput/CaseDescription-24 $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Mapping tree


iProcessStartCaseActivityInput
 CaseDescription-24 = $Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM

    • Source code


            <ns:iProcessStartCaseActivityInput xmlns:ns="www.tibco.com/plugin/staffware/iProcessStartCaseActivityInput" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="http://www.tibco.com/schemas/pantherbw/PantherBW/ProcessDefinitions/Schema/Schema.xsd" xmlns:pfx2="http://www.tibco.com/pe/GenerateErrorActivity/InputSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns1="http://www.tibco.com/pe/EngineTypes">
                <CaseDescription-24>
                    <xsl:value-of select="$Start/pfx:TriggerCourtProcessRequest/pfx:SW_CASENUM"/>
                </CaseDescription-24>
            </ns:iProcessStartCaseActivityInput>

Transitions:

  • From: Assign -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Catch -To: Assign
    • Label:
    • Condition: Success
    • Description:
  • From: Panther1 - restart process -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Panther1 - send email -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Panther2 - begin the process -To: End
    • Label:
    • Condition: Success
    • Description:
  • From: Start -To: End
    • Label: end process
    • Condition: $Start/pfx:TriggerCourtProcessRequest/pfx:message="QUIT"
    • Description: ends the process
  • From: Start -To: Generate Error
    • Label:
    • Condition: Success with no matching condition
    • Description:
  • From: Start -To: Panther1 - restart process
    • Label: restart
    • Condition: $Start/pfx:TriggerCourtProcessRequest/pfx:message="RESTART"
    • Description: restarts the whole process
  • From: Start -To: Panther1 - send email
    • Label: mail
    • Condition: $Start/pfx:TriggerCourtProcessRequest/pfx:message="MAIL"
    • Description: starts the procedure which sends email
  • From: Start -To: Panther2 - begin the process
    • Label: court
    • Condition: $Start/pfx:TriggerCourtProcessRequest/pfx:message="COURT"
    • Description: starts the court
