SendApprRequest

License for TIBCO Software Use Only!

Section contains description of Process " SendApprRequest.process " .

Modification time: 2023/04/20 10:31:06

Folder description:

FolderDescription
AppraisalThis application gets information about a realty and send this information to one of appraisers (choose momentaly the least busy one). The price of the realty is then sent in EMS message.

Process description:

send BE request for appraisal to bank service

Process definition:

Full process path: pawn/SendApprRequest.process

Diagram:

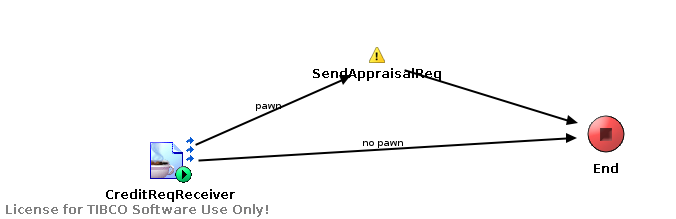

CreditReqReceiverEndSendAppraisalReqFrom: SendAppraisalReq To: EndFrom: CreditReqReceiver To: SendAppraisalReqFrom: CreditReqReceiver To: End

Process starter activity:

Name: CreditReqReceiver

  • Property Name: CreditReqReceiver
    • Type: com.tibco.plugin.jms.JMSQueueEventSource
    • Resource Type: ae.activities.JMSQueueEventSource
    • Description:
    • Configuration:
      • PermittedMessageType = XML Text
      • SessionAttributes
        • transacted = false
        • acknowledgeMode = 1 (Auto)
        • maxSessions = 1
        • destination = %%ENV%%.%%QueueCreditReq%%
      • ConfigurableHeaders
        • JMSDeliveryMode = PERSISTENT
        • JMSExpiration = 0
        • JMSPriority = 4
      • ConnectionReference = /SharedJMSResources/JMSConn.sharedjmscon
      • ApplicationProperties =
      • OutDataxsdString
        • - CreditRequest (XML Element Reference, required )

Process end activity:

Name: End

Activities:

Name: SendAppraisalReq

  • Type: com.tibco.be.bw.plugin.BESendEvent
  • Resource Type: ae.activities.BESendEvent
  • Description: send BE request for appraisal
  • Configuration:
  • Input bindings:

    • Mapping table

      TargetSource
      /BESendEventInput/appraisalRequest/customerName $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/Name
      /BESendEventInput/appraisalRequest/realtyDetails $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/RealtyDetail

    • Mapping tree


BESendEventInput
 appraisalRequest
  customerName = $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/Name
  realtyDetails = $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/RealtyDetail

    • Source code


            <ns:BESendEventInput xmlns:ns="www.tibco.com/plugin/be" xmlns:pd="http://xmlns.tibco.com/bw/process/2003" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:pfx="www.tibco.com/be/ontology/BEmodule/Events/appraisalRequest" xmlns:ns1="http://www.tibco.com/namespaces/tnt/plugins/jms" xmlns:ns2="www.tibco.com/be/ontology/pawn/Events/appraisalRequest" xmlns:pfx2="http://www.tibco.com/xmlns/ae2xsd/2002/05/GrantingCredit/GrantinCreditAESchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:pfx3="http://www.tibco.com/xmlns/ae2xsd/2002/05/Appraisal/AppraisalSchema">
                <ns2:appraisalRequest>
                    <customerName>
                        <xsl:value-of select="$CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/Name"/>
                    </customerName>
                    <realtyDetails>
                        <xsl:value-of select="$CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/RealtyDetail"/>
                    </realtyDetails>
                </ns2:appraisalRequest>
            </ns:BESendEventInput>

Transitions:

  • From: CreditReqReceiver -To: End
    • Label: no pawn
    • Condition: $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/Pawn = "false"
    • Description: customer has no pawn
  • From: CreditReqReceiver -To: SendAppraisalReq
    • Label: pawn
    • Condition: $CreditReqReceiver/ns1:ActivityOutput/Body/pfx3:CreditRequest/Pawn="true"
    • Description: customer has pawn
  • From: SendAppraisalReq -To: End
    • Label:
    • Condition: Success
    • Description:
